26W-40W Isolation Constant Current LED Driver Silicon Controlled Dimming Power Supply for Indoor LED Lighting

Featrues:
For Led Indoor Office & Retail Application
25-40V/ PWM Dimming Function
Compact Size/Optimized Performance
Constant Current Design
Wide Input Range For Worldwide Use
High Reliability& Long Life 50000 Hours
Low Ripple Current/Low Inrush Current
Short Circuit/Open Circuit  Protection
Over Temperature /Voltage Protection
100% Burn-in Test
Low Energy Consumption At Standby
Meet EMI EN55015

E-mail

Product Description:

DESCRIPTIONS:
This product is 26-40W isolation, Constant Current Dimmalble LED driver, the driver is silicon controlled dimming power supply for led indoor. The unit meets EMI EN 55015,Confirms to UL STD.8750,Certified to CSA STDCS22.2 NO.250.13,Suitable For Damp ,Dry locations,Convient AUX Emplacements Humides,and is designed for led indoor light application. .

RELIABLE POWER FOR INDOOR LED LIGHTING
Enhance your LED lighting systems with our 26-40W Isolation Constant Current Dimmable LED Driver. This silicon-controlled dimming power supply is designed specifically for indoor applications, providing stable and reliable power delivery to your LED lighting solutions.
Operating with a primary input of 100VAC at 60Hz, this driver draws 0.5A of current and outputs a constant current of 580-1000mA within a voltage range of 25-40V DC. This ensures optimal performance and longevity for your LEDs, making it ideal for residential, commercial, and industrial lighting applications.

STABLE AND SAFE PERFORMANCE
Our LED driver meets stringent EMI standards and high safety standards. The isolation feature enhances safety by preventing direct electrical contact between the input and output, reducing the risk of electric shock.

VERSATILE AND RELIABLE
Designed for both damp and dry indoor locations, this led driver is versatile and reliable, making it suitable for various environments. Whether you are installing new lighting systems or upgrading existing ones, our LED driver is the perfect choice for ensuring consistent and efficient power supply.

HIGH-EFFICIENCY DIMMING CONTROL
The silicon-controlled dimming capability allows for precise adjustment of light intensity, providing customizable brightness levels to suit different settings and preferences. This feature enhances user comfort and contributes to energy savings by allowing you to reduce light output when full brightness is not needed.
Enhance your LED lighting systems with our dependable 40W Isolation Constant Current Dimmable LED Driver. Designed to meet high standards of performance, energy efficiency, and safety, this driver is the ideal solution for a wide range of indoor LED lighting applications. Choose our driver for a reliable power solution that meets your diverse needs.

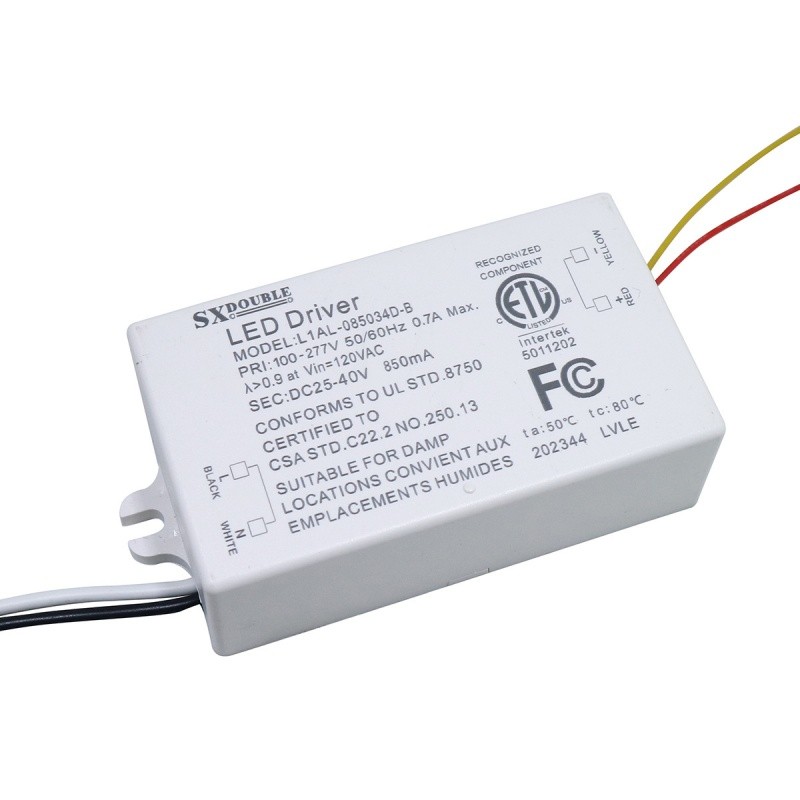

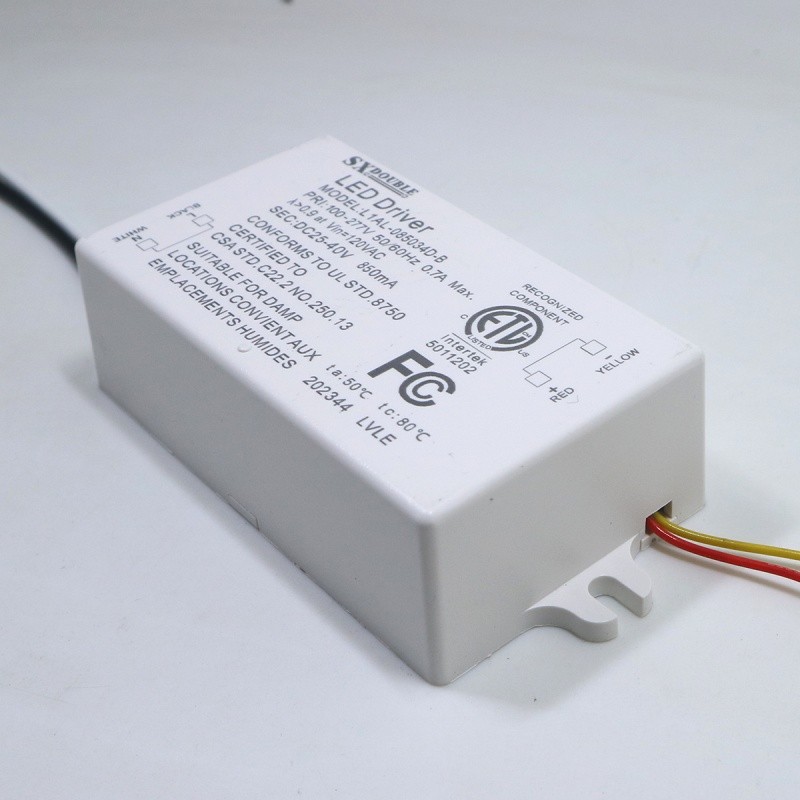

Product Appearance:
Size : 90x53x28mm
Weight : 120g
Input wire :18AWG, min. 300V, min. 105°C，Customizable length
Output wire:22AWG, min. 300V, min. 105°C，Customizable length

Specifications:
Input:PRI 100-277Vac;50/60Hz 0.7AMax
Output:SEC DC 25-40V 580-1000mA
Efficiency: 84%
Power Factor:PF≥0.9
Power:26-40W
ta:45℃ to:63 ℃
EMI Standards:MEET EN 55015:2006+A1:2009;FCC Part15.EMS :EN61000
Safety Standards: ETL FCC ROSH Reach Certified to CSA STDCS22.2 NO.250.13
Warranty : 24 months
Support custom sticker, laser sticker

Tags: High Efficiency 26-40W Isolation Constant Current LED Driver - Silicon Controlled Dimming Power Supply for Indoor LED Lighting
