12V 5A Power Supply , ac dc power supply adapter for LED Strip Lights 60W

12V 5A Power Supply , ac dc power supply adapter for LED Strip Lights 60W

Features:
High efficiency
Convenient Connector
Safety Features
Efficiency level VI
Meet  GB4943  UL60950,CSA22.2,No.60950,EN60950 ,IEC60950
High Reliability
Low Profile
Over Current Protection
Over Temperature Protection
Over Voltage Protection
With PFC

E-mail

Product Description:

DESCRIPTION:

Our 12V 5A power adapter is a reliable and versatile solution for converting AC 100-240V 50/60Hz to DC 12V, providing a stable 5A max output suitable for a wide range of electronic devices. Designed to ensure consistent voltage without fluctuations, this led strip power adapter protects your electronic products during power on, operation, and power off phases.

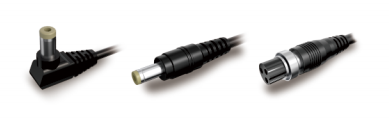

Safety is a top priority, with built-in protections against overload, over voltage, thermal events, and short circuits. The adapter features a standard 5.5mm x 2.1mm and 5.5mm x 2.1mm plugs. For added convenience, a free female DC connector is included, allowing for easy and solder-free wire connections.

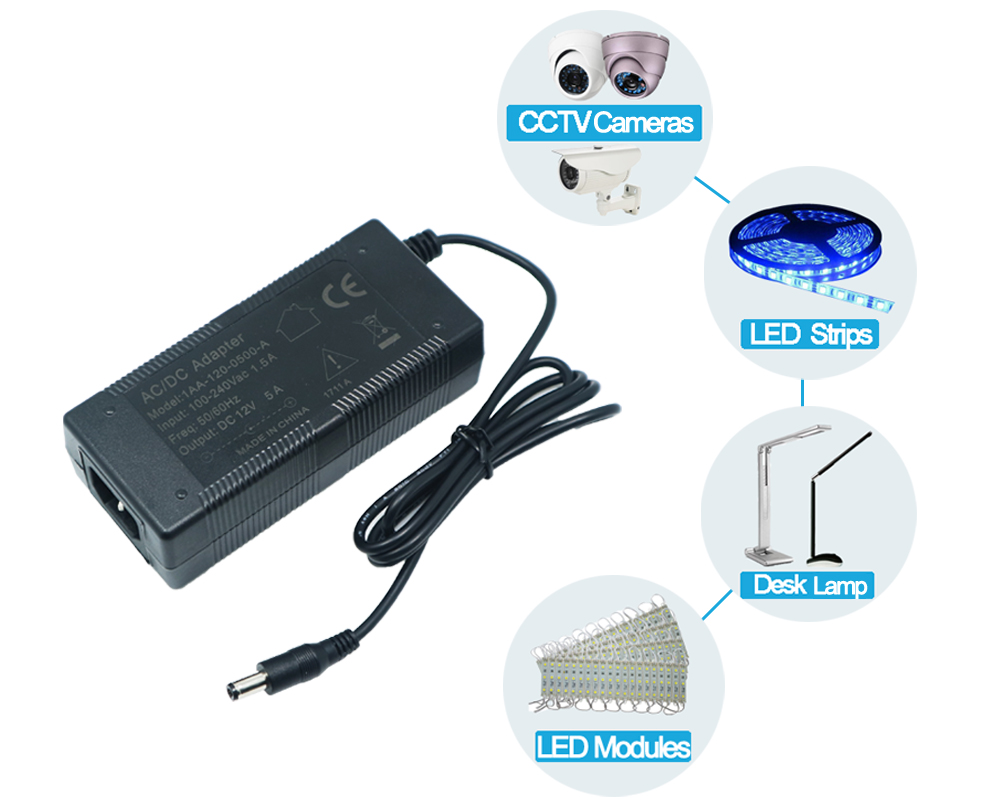

This power adapter is ideal for powering LED strip lights, 3D printers, CCTV cameras, car subwoofer amplifiers, audio amplifiers, wireless routers, ADSL Cats, HUBs, and other audio/video equipment. Note that it is designed for indoor use only.

Whether you are a wholesaler, importer, brand owner, electronics manufacturer, or retailer, our 12V 5A power adapter offers the high-quality and dependable performance you need. Enhance your product offerings with this reliable and efficient power solution, designed to meet the diverse needs of various electronic applications.

Support customized power supply

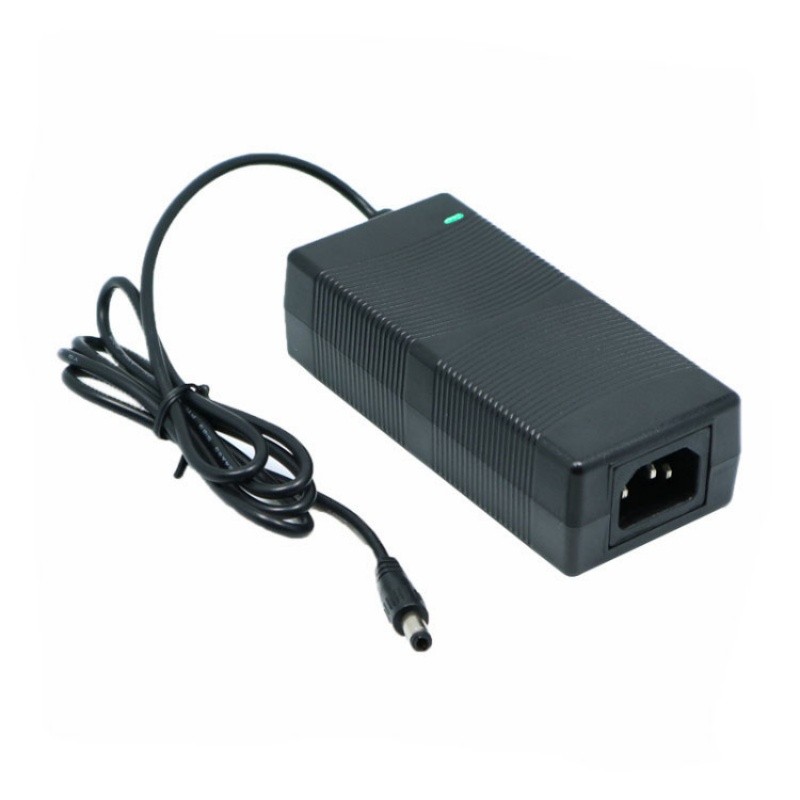

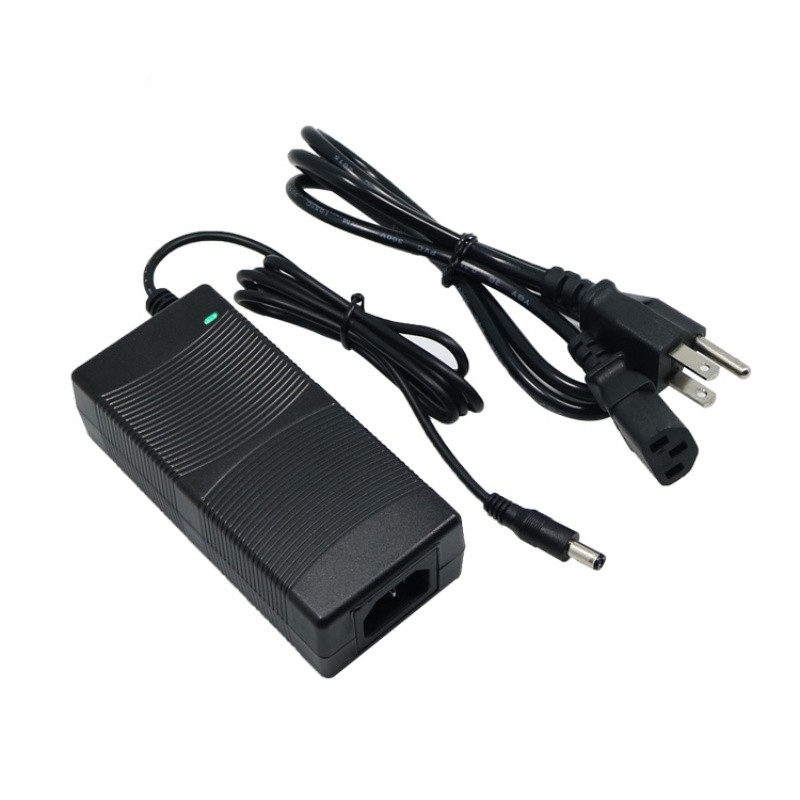

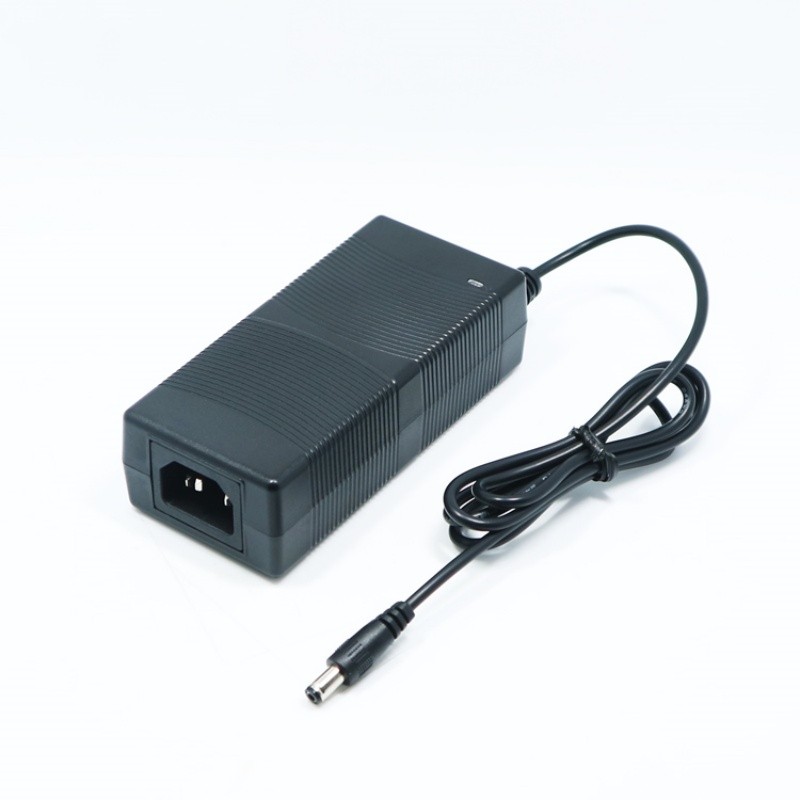

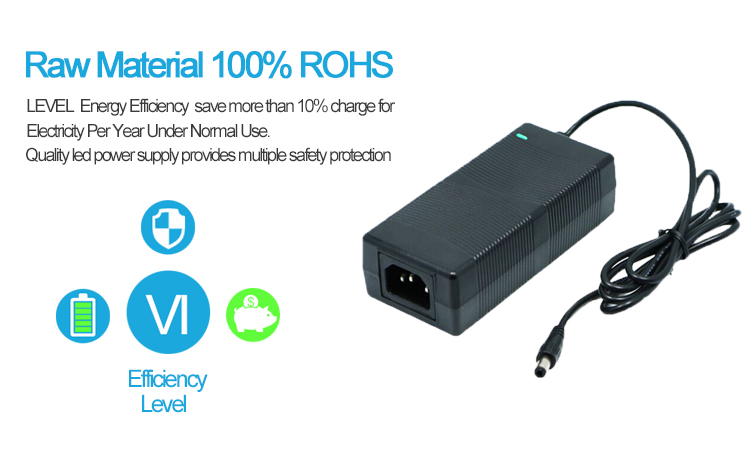

Product Appearance:

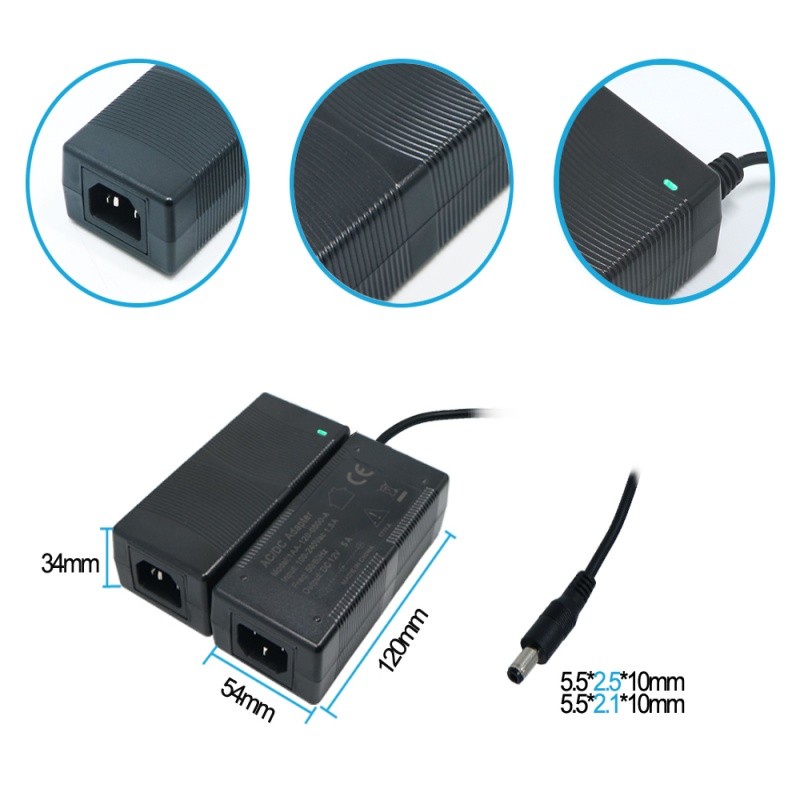

Product Size : 120x54x34mm
Weight: 232 g
Output Type:Support fixed cable output,customizable output ports
AC Outlet: Support C6, C8,C14

Specifications:
Input voltage : 100-240V(Range, 90-264VAC )
Input Current : 100Vac, 240Vac / full load ≦ 1.5A
Input Frequency : 50-60Hz(Range 47-63Hz)
Output voltage :12v
Output Current : 0-5A
Ripple&Noise: 80MV max
Power consumption at no load :0.15W max
Voltage /Load Regulation : ±1% / ±5%
Power Factor:115Vac, 230Vac / full load ≧ 0.4

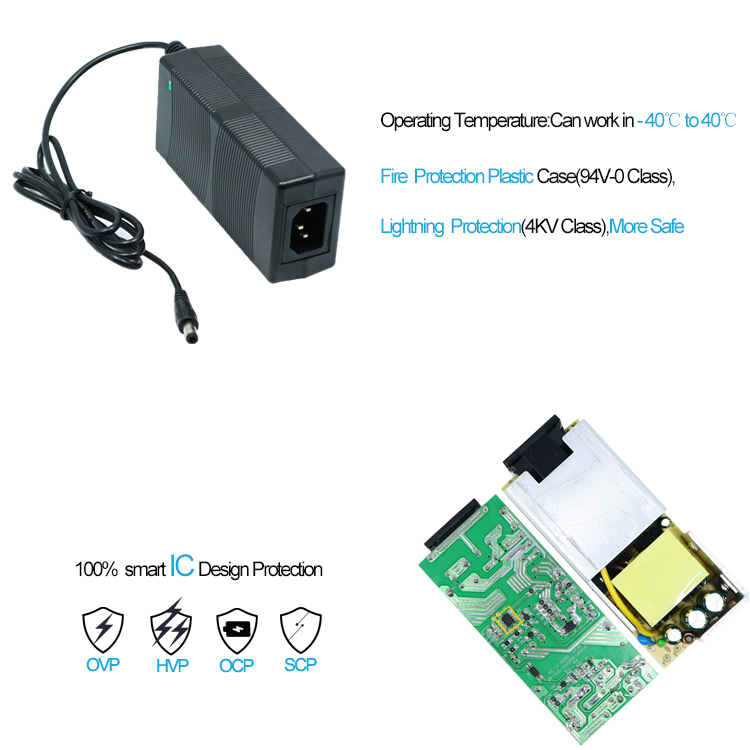

Working TEMP : -40~40℃

Safety Standards: MEET GB4943 UL 60950,CSA C22.2 No.60950,EN60950,IEC 60950

EMC Standards： MEET EN55024 EN61000-4-2 EN61000-4-5,EN61000-4-3 EN61000-4-4, MEET EN55032 FCC PART 15 GB/T9254-2008

12V 5A Power Supply , ac dc power supply adapter for LED Strip Lights,CCTV Systems
