GAN Wall Charger 1A +1C 45W

Features:
Ultra-compact size
Portable Design
Maximum output power up to 45 W
Innovative GaN technology
One wall charger  Many uses
Type C  Output PD:45W

E-mail

Product Description:

Product Description:
The GAN Wall Charger 45W is a cutting-edge charging solution designed to maximize efficiency and performance through advanced Gallium Nitride (GAN) technology. Delivering up to 45W of power, this versatile charger is perfect for fast charging laptops, tablets, and smartphones, making it ideal for wholesalers, importers, brand owners, electronics manufacturers, and individual consumers.

With dual-port capability—1 USB-A and 1 USB-C—it provides universal compatibility, ensuring seamless charging for a wide range of devices. Its compact and lightweight design, enabled by GAN technology, makes it an ideal travel companion, significantly smaller than traditional silicon-based chargers without compromising on power.

Safety is paramount with the 45W GAN Wall Charger, as it comes equipped with advanced protection features such as overvoltage, overcurrent, overheating, and short-circuit safeguards, ensuring a safe charging experience. The reversible USB-C connector adds convenience by allowing connections from either side, eliminating the need for careful alignment.

Whether at home, at the office, or on the go, the 45W GAN Wall Charger is the ultimate solution for reliable, fast, and safe charging. Its smart chip detects your device’s power requirements, optimizing the charging speed without causing overheating. With this charger, you can replace the clutter of multiple chargers with one compact solution that powers all your essential devices.
Upgrade your charging experience with the GAN Wall Charger 45W, combining next-generation technology, sleek design, and robust safety features.

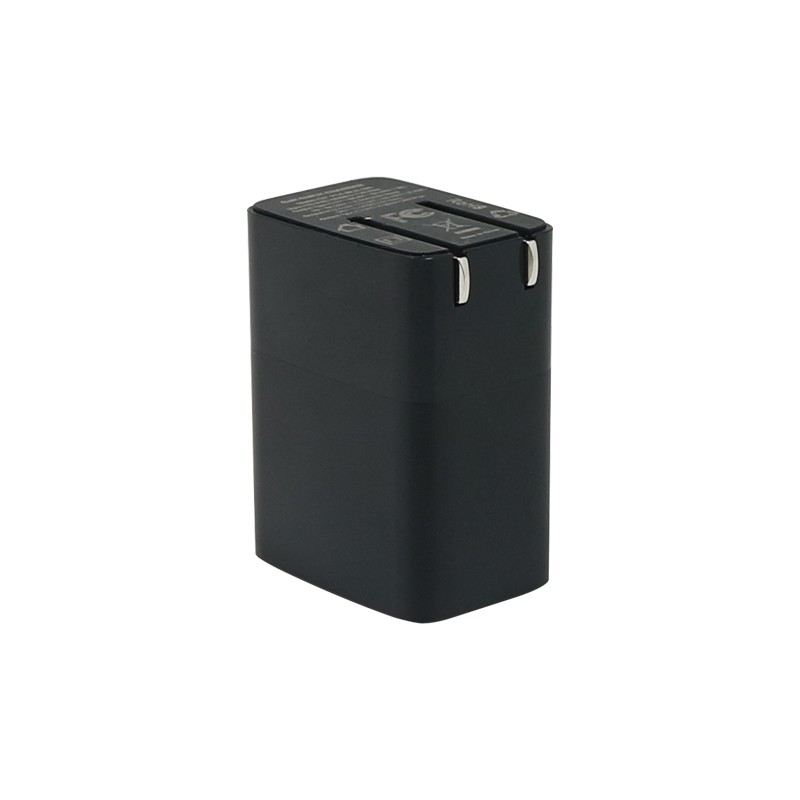

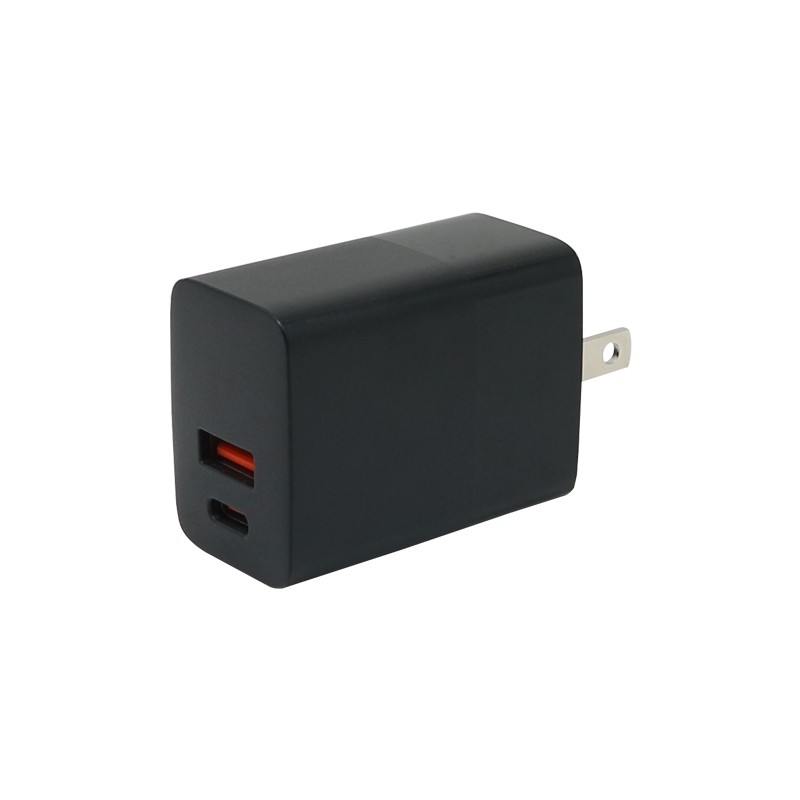

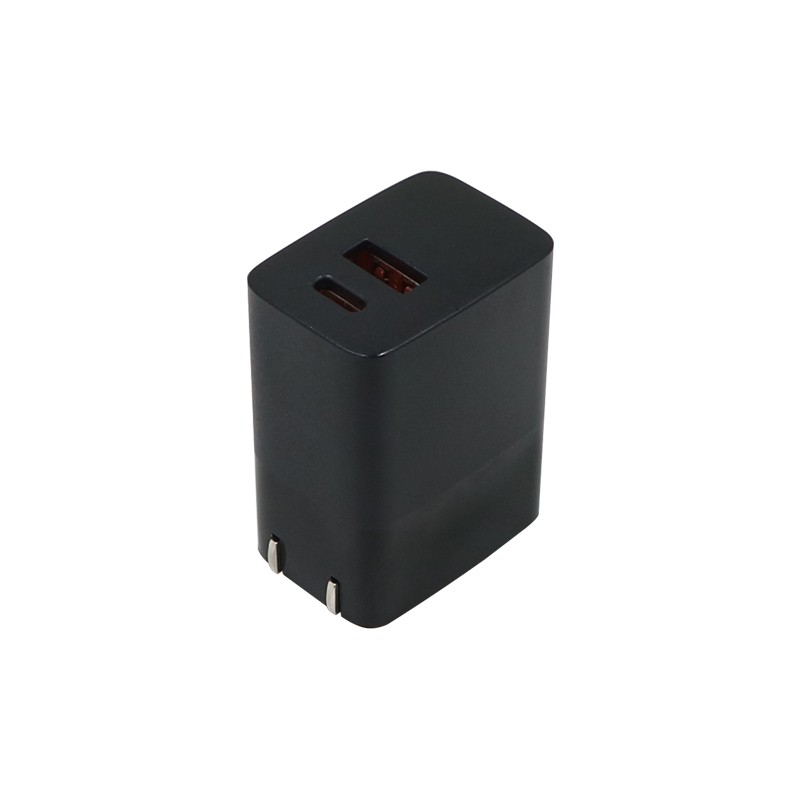

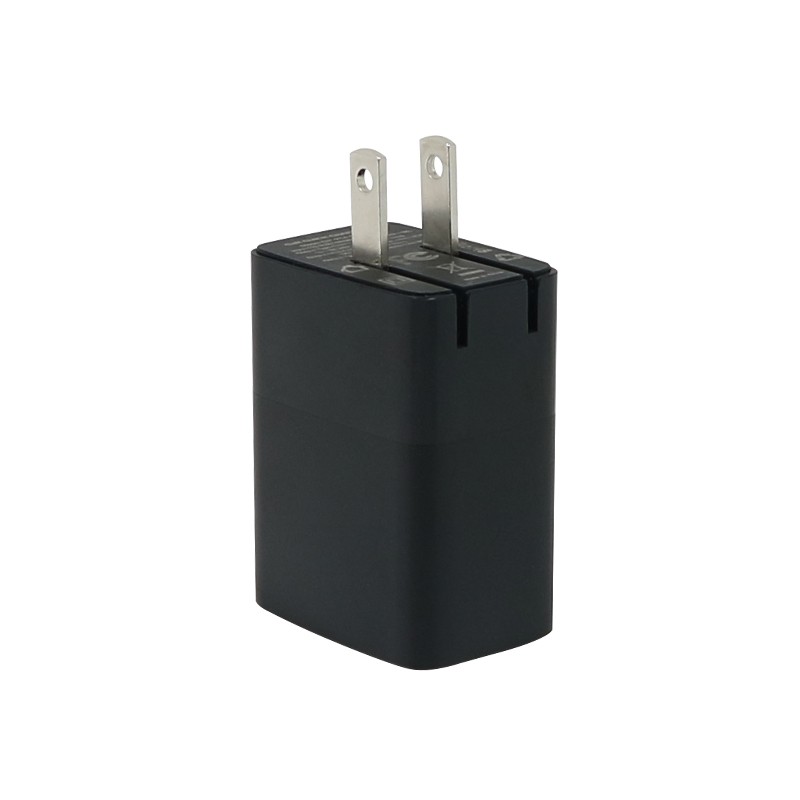

Product Appearance:
Product Size : 54*40*28mm
Weight: 65 g
Output Type:Support USB output
AC Plug Type: EU US CN Optional

Specifications :
Model identifier: SXGAC45
Input voltage: AC 100-240V
Input frequency: 50-60 Hz
Input frequency: 1.2Amax
Output Type -C: 5V 3A ,9V 3A, 12V 3A,15V 3A,20V 2.25A(45W Max)
Output USB A :5V3A ,9V 2A,10V-2.25A,12V1.5A(22.5W Max)
Out Type-c+USB-A:30W+12W
Output power: 45,0 W
Average active efficiency: 88,18 %
Efficiency at low load (10 %): 80,17 %
No-load power consumption: 0,2 W
Working TEMP : -10~35℃
Safety Standards: IEC/EN/UL62368-1: CE Reach ROHS
EMC Standards： EN55032 FCC PART 15 GB/T9254-2008
