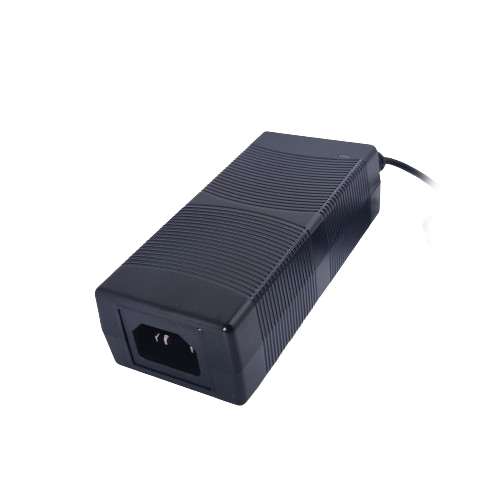

24V Swithcing Power Supply for Swithing Networks Applications 24W

Features:
High efficiency
Low ripple noise
No minimum load  requiement
LED indicator for power on
Fully enclosed plastic case
100% burn in test
Safety Features
Energy Star  LEVEL VI
Over Current Protection
Over Temperature Protection
Over Voltage Protection
Meet UL,CCC,CE,FCC standard

E-mail

Product Description:

Description:
The 24V Switching Power Supply 24W is a reliable power solution tailored for Power over Ethernet switching network applications, delivering a consistent 24V output with 24W of power to support various POE-enabled devices. It is perfect for powering IP cameras, routers, and network switches, making it a valuable addition to any professional networking setup.

Designed with switching power supply technology, this adapter ensures high efficiency with minimal energy loss during conversion, providing reliable power to your devices. The compact and lightweight design makes it easy to integrate into tight spaces within network installations. Additionally, the built-in safety features, including overvoltage, overcurrent, and short-circuit protection, ensure the safe operation of connected devices.

Whether you're a wholesaler, importer, brand owner, electronics manufacturer, or retailer, the 24V POE power supply is designed to meet the demands of your network applications. Its wide compatibility allows it to work seamlessly with a variety of switching devices, providing a robust and efficient power source for both small and large-scale network setups.

Upgrade your network with the 24V 24W Switching Power Supply to ensure stable and safe power delivery for all your POE network devices.

Product Appearance:
Product Size : 120x54x34mm
Weight: 185 g
AC type: Support fixed cable output,customizable output ports

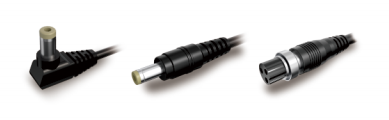

DC Plug:5.5*2.5*10mm 5.5*2.1*10mm or custom made
AC Outlet: Support C6, C8,C14

Specifications:
Input Voltage : 100-240 Volts AC 50/60Hz
Input Current : 100Vac, 240Vac / full load ≦ 1.5A
Input Frequency : 50-60Hz(Range 47-63Hz)
Output voltage :24V
Output Current : 1000MA
Ripple&Noise: 100MV max
Power consumption at no load :0.15W max
Voltage /Load Regulation : ±1% / ±5%
Power Factor:115Vac, 230Vac / full load ≧ 0.4
Working TEMP : -40℃ to +50℃
Safety Standards: MEET GB4943 UL 60950,CSA C22.2 No.60950,EN60950,IEC 60950
EMC Standards： MEET EN55024 EN61000-4-2 EN61000-4-5,EN61000-4-3 EN61000-4-4, MEET EN55032 FCC PART 15 GB/T9254-2008

Support customized power supply
