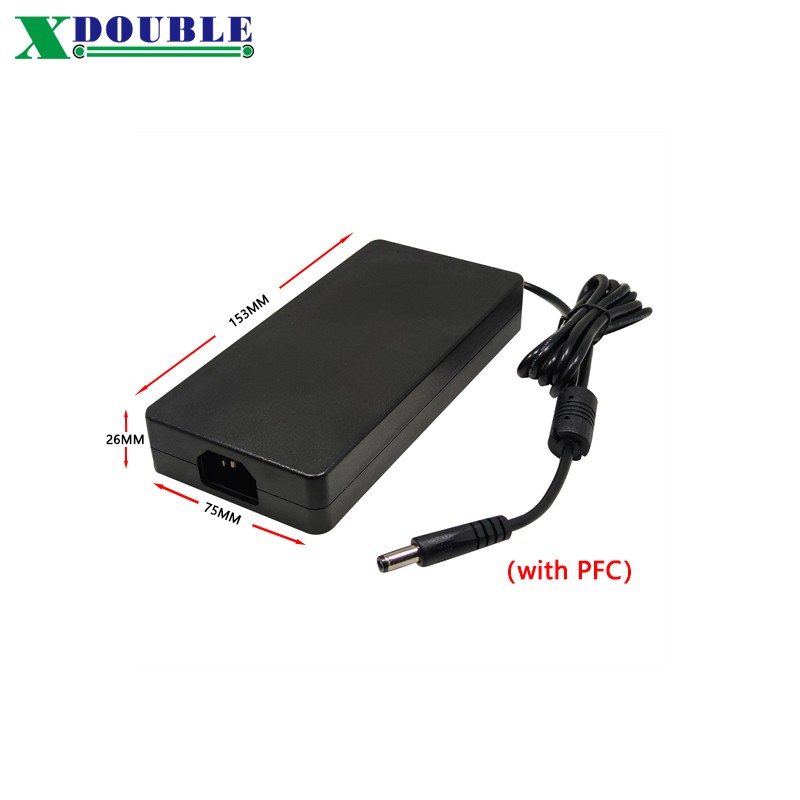

Features: 1 Inch Height, Semi-Slim Shape Certified IEC 62368-1 & CB 60950-1 Meet USA EISA 2007 Meet Energy Efficiency DOE Level VI Meet Code of Conduct Version 5 Tier 2 High Reliability Low Profile Over Current Protection Over Temperature Protection Over Voltage Protection With PFC Circuit Warranty：24 months

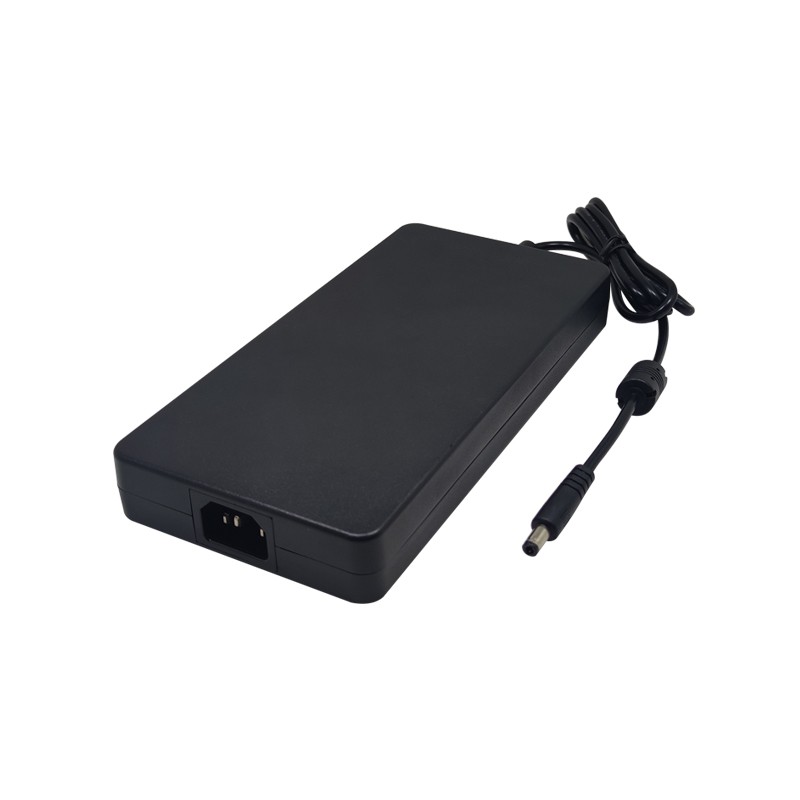

This Switching Power Supply is an 150-180 watts AC to DC adapter intended for use in IPC systems, embedded systems, printers, medical equipment,monitors, POS systems and POE application, that have a high wattage demands. This ac dc adapter 150-180w power supply operates at 90 to 264 VAC input voltage. The unit meets CISPR32 EN55032 CLASS B, EN55024 and FCC PART 15B Class B emission limits, and is designed for ITE application.
Introducing our Premium 150-180W Switching Power Supply, meticulously engineered to meet the high-wattage demands of IPC systems, embedded devices, and various electronic equipment. With a power output ranging from 150 to 180 watts, this power supply provides reliable and stable power delivery for critical applications .
Designed with versatility and reliability in mind, our switching power supply ensures compatibility with a wide range of devices, making it the ideal choice for electronics manufacturers, wholesalers, and brand owners. Its wide input voltage range (90 to 264 VAC) allows for seamless integration into different power environments, providing flexibility and convenience.
Safety is of utmost importance, which is why our power supply meets safety standard, ensuring minimal electromagnetic interference and reliable operation in any environment. Crafted with precision and adherence to industry standards, our power supply is designed specifically for Information Technology Equipment (ITE) applications, guaranteeing optimal performance and reliability.
In summary, our Premium 150-180W Switching Power Supply offers exceptional power output, compatibility, and safety features, making it the preferred choice for high-wattage IPC systems, embedded devices, and various electronic equipment. Trust in our product to meet your power supply needs and enhance the performance of your critical devices.

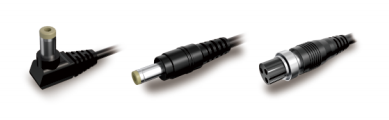

DC Plug :5.5*2.1（2.5）*12mm
EMC Standards： EN55032 FCC PART 15 GB/T9254-2008
Support customized power supply
|
Model |
Output Voltage |
Output Current |
AC Inlet |
Efficiency
|
Over Voltage protection |
|
|
DOE（Level VI） |
COC V5（Tier2） |
|||||
|
SX120-0125 |
12V |
12.5A |
C6/C8/C14 |
≥88% |
≥89% |
19Volts |
|
SX120-0150 |
12V |
15A |
C6/C8/C14 |
19Volts |
||
|
SX150-0100 |
15V |
10A |
C6/C8/C14 |
19Volts |
||
|
SX150-0120 |
15V |
12A |
C6/C8/C14 |
19Volts |
||
|
SX190-0789 |
19V |
7.89A |
C6/C8/C14 |
26Volts |
||
|
SX190-0950 |
19V |
9.5A |
C6/C8/C14 |
26Volts |
||
|
SX240-0630 |
24V |
6.3A |
C6/C8/C14 |
32Volts |
||
|
SX240-0750 |
24V |
7.5A |
C6/C8/C14 |
32Volts |
||
|
SX260-0650 |
26V |
6.5A |
C6/C8/C14 |
32Volts |
||
|
SX360-0050 |
36V |
5A |
C6/C8/C14 |
32Volts |
||
|
SX480-0428 |
42V |
4.28A |
C6/C8/C14 |
58Volts |
||
|
SX480-0375 |
48V |
3.75A |
C6/C8/C14 |
58Volts |
||
|
SX520-0346 |
52V |
3.46A |
C6/C8/C14 |
58Volts |
||
12V
15V 19V 24V 32V 48V 52V Desktop AC DC Power adapter 90W
12V 15V 19V 24V 32V 48V 52V Desktop AC DC Power adapter 90W
12V 15V 19V 24V 32V 48V 52V Desktop AC DC Power adapter 90W
The power supply is an inseparable product that
QC (Quick Charge) and PD (Power Delivery) charge
Small, fast and can be used universally. The PD
