Support the following agreements Compact design Dual USB A+C output Power Delivery 20W PD 3.0 QC 3.0 (Quickly Charge) 3.0, QC3.0+,QC2.0 FCP(Fast Charge Protocol) AFC(Adaptive Fast Charger) Apple 5V/2.4A BC1.2 USB-A Output Apple 5V/2.4A
This product is an USB A +Type-c wall charger PD charger 20W Power adapter for use in devices such as mobile phones, cameras, and laptops as the usage scope becomes more and more extensive.The new generation of PD fast phone chargers power adapter can use the PPS feature to perfectly integrate QC and satisfy the need for fast charging.Thanks to its compact, elegant design, you can proudly display it both at home and in the office. A number of safety features such as over voltage, overload, overheating and short-circuit protection ensure safe charging.

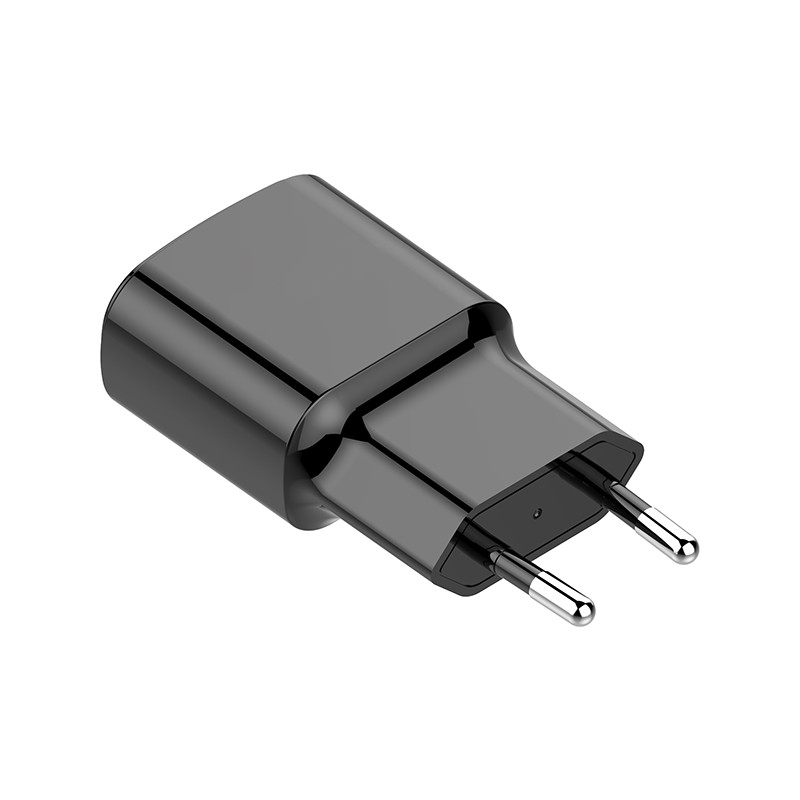

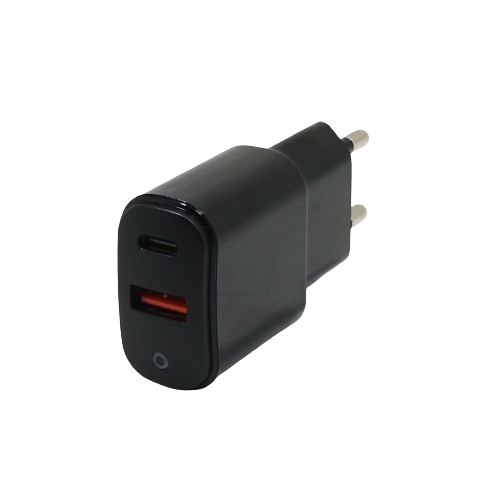

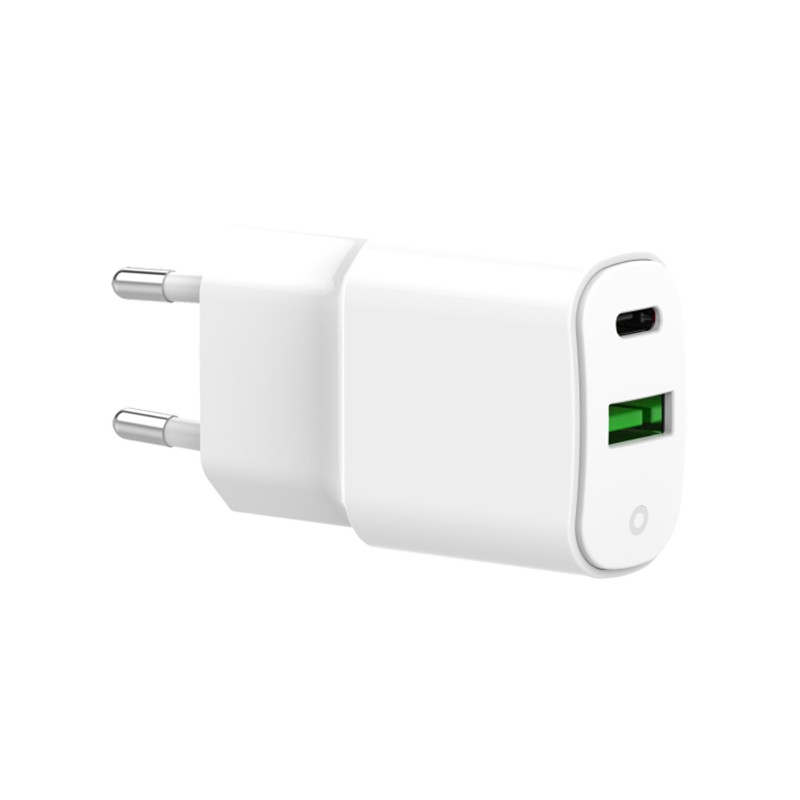

Product Appearance:
Product Size : 61*38.5*22mm (For EU Plug)
Weight: 42.5 g
Output Type:Support USB+ type-c output
AC Plug Type: EU US CN Optional
Specifications:
Model identifier: SXPD1A1C20
Input voltage : 100-240V(Range, 90-264VAC )
Input Current : 0.6AMax
Input Frequency : 50-60Hz(Range 47-63Hz)
Output voltage :DC 5v-12v
Output Current : 0.1-3A
Type C Output: 5V/3A 9V/2.22A 12V/1.67A
USB-A Type : output: 3.3-6V/3A 6-9V/2A 9-12V/1.5A
Power: 20W
Ripple&Noise: 180MV max
Working TEMP : -10~35℃
Safety Standards: IEC/EN/UL62368-1: CE Reach ROHS
EMC Standards： EN55032 FCC PART 15 GB/T9254-2008
USB A+C Wall charger 20W PD Charger
USB A+C Wall charger 20W PD Charger
USB A+C Wall charger 20W PD Charger
The power supply is an inseparable product that
QC (Quick Charge) and PD (Power Delivery) charge
Small, fast and can be used universally. The PD
