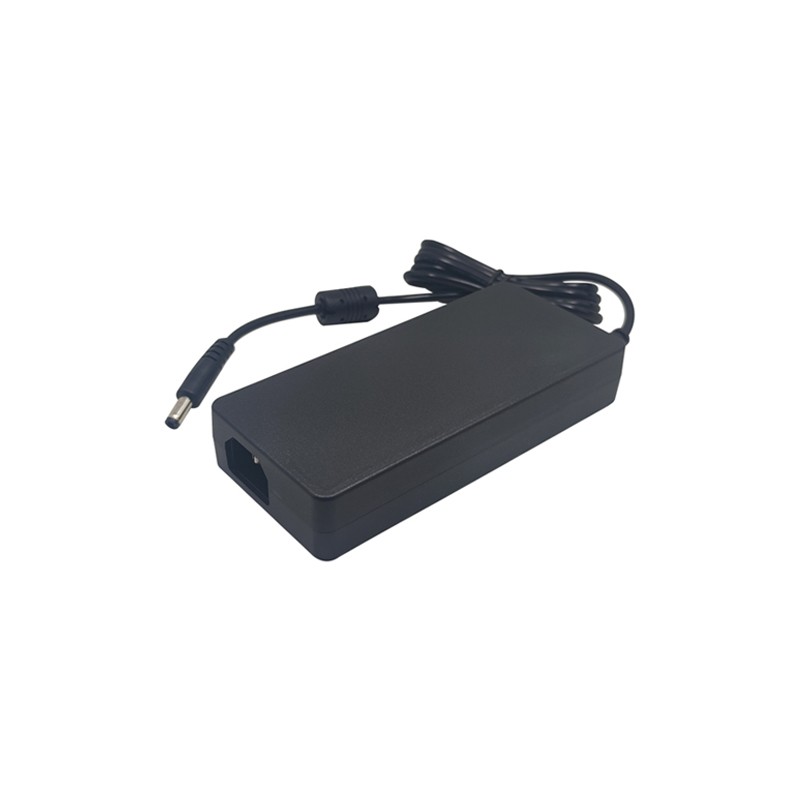

12V 15V 19V 24V 32V 48V 52V Desktop Power Supply adapter 120W

Features:
1 Inch Height, Semi-Slim Shape
Certified IEC 62368-1 & CB 60950-1
Meet USA EISA 2007
Meet Energy Efficiency DOE Level VI
Meet Code of Conduct Version 5 Tier 2
High Reliability
Low Profile
Over Current Protection
Over Temperature Protection
Over Voltage Protection
With PFC Circuit
Warranty:24 months

E-mail
Product Description:
Descriptions:

This  desktop power supply adapter is an 120 watts AC to DC adapter intended for use in IPC systems, embedded systems, printers, medical equipment,monitors, POS systems and POE application, that have a high wattage demands. This ac adapter 120w power supply  operates at 90 to 264 VAC input voltage. The unit meets CISPR32 EN55032 CLASS B, EN55024 and FCC PART 15B Class B emission limits, and is designed for ITE application.

The 120W Desktop Power Supply Adapter, meticulously crafted to meet the demanding power requirements of IPC systems, embedded devices, and various electronic equipment. With a power output of 120 watts, this adapter provides reliable power delivery for a wide range of applications, including printers, medical equipment, monitors, POS systems, and POE applications.

Designed with versatility and reliability in mind, our desktop power supply adapter ensures compatibility with a variety of devices, making it the perfect choice for electronics manufacturers, wholesalers, and brand owners. Its wide input voltage range (90 to 264 VAC) allows for seamless integration into different power environments, providing flexibility and convenience.

Safety is paramount, which is why our power adapter meets safety standard ensuring minimal interference and reliable operation in any setting. Crafted with precision and adherence to industry standards, our adapter is designed for Information Technology Equipment (ITE) applications, guaranteeing optimal performance and reliability.

The 120W Desktop Power Supply Adapter offers exceptional power output, compatibility, and safety features, making it the preferred choice for IPC systems, embedded devices, and various electronic equipment. Trust in our product to meet your power supply needs and enhance the performance of your critical devices.

Product Appearance:

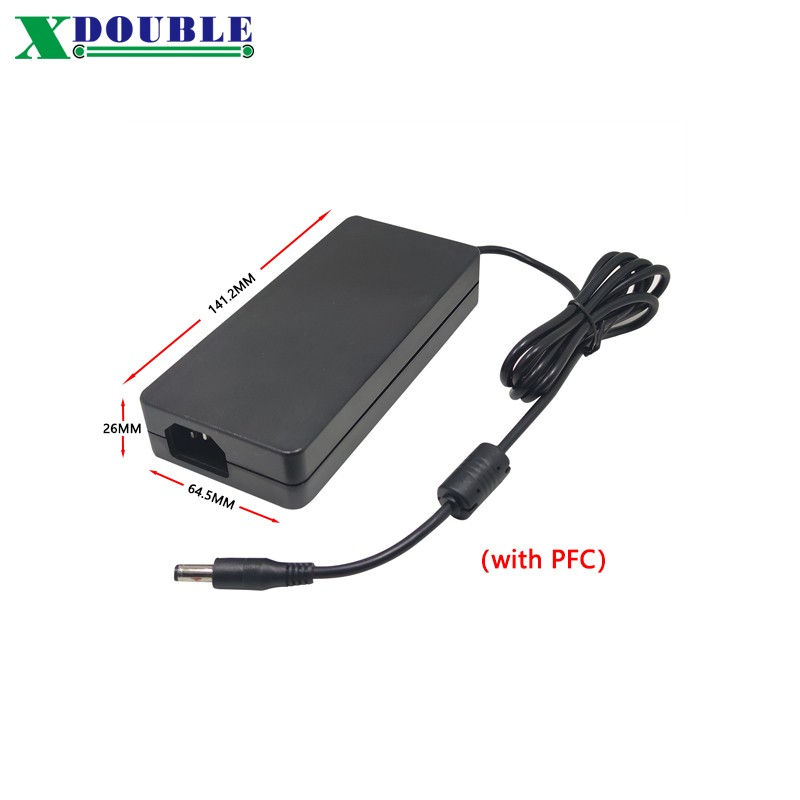

Product Size : 141.2.X64.5X26 mm
Weight: 320 g
Output Type:Support fixed cable output
AC Outlet: Support  C6, C8,C14

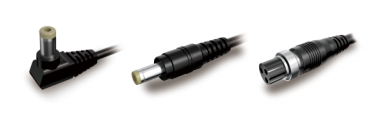

DC Plug :5.5*2.1(2.5)*12mm

Specifications:
Input Voltage :100-240V(Range, 90-264VAC )
Input Current : 100Vac, 240Vac / full load ≦ 1.2A
Input Frequency : 50-60Hz(Range 47-63Hz)
Output voltage :12v-52v
Output Current : 1.73A-7A
Ripple&Noise: 300MV  max
Power consumption at no load :0.21W max
Voltage /Load Regulation : 5%   / 10%
Power Factor:115Vac, 230Vac / full load  ≧ 0.9
Working  TEMP : 0~70℃ (>40℃ de-rating)
Safety  Standards: IEC/EN/UL62368:UL/cUL FCC  CCC CB CE GS
EMC  Standards: EN55032  FCC  PART 15  GB/T9254-2008

Support customized power supply


Model

Output Voltage

Output Current

AC Inlet

Efficiency

Over Voltage protection

DOELevel VI

COC V5Tier2

SX120-0100

12V

10A

C6/C8/C14

88%

89%

19Volts

SX150-0800

15V

8A

C6/C8/C14

19Volts

SX190-0631

19V

6.31A

C6/C8/C14

26Volts

SX240-0500

24V

5A

C6/C8/C14

32Volts

SX360-3300

36V

3.3A

C6/C8/C14

48Volts

SX420-2850

42V

2.85A

C6/C8/C14

48Volts

SX480-0250

48V

2.5A

C6/C8/C14

58Volts

SX520-0230

52V

2.3A

C6/C8/C14

58Volts
