Features: 1 Inch Height, Semi-Slim Shape Certified IEC 62368-1 & CB 60950-1 Meet USA EISA 2007 Meet Energy Efficiency DOE Level VI Meet Code of Conduct Version 5 Tier 2 High Reliability Low Profile Over Current Protection Over Temperature Protection Over Voltage Protection With PFC Circuit Warranty: 24 months
This ac dc power adapter is an 84-96 watts AC to DC adapter intended for use in IPC systems, embedded systems, printers, medical equipment,monitors, POS systems and POE application, that have a high wattage demands. This ac /dc adapter 90w operates at 90 to 264 VAC input voltage. The unit meets CISPR32 EN55032 CLASS B, EN55024 and FCC PART 15B Class B emission limits, and is designed for ITE application.
The 90W AC/DC Power Adapter, a versatile solution tailored for wholesalers, importers, and electronics manufacturers seeking high-quality power solutions. With its compact design and advanced features, this power adapter is perfect for a wide range of applications, including IPC systems, printers, monitors, POE switch and more.
Designed with versatility in mind, our power adapter offers OEM customization options, allowing you to tailor it to meet your specific branding and functional requirements. Whether you're an electronics manufacturer looking to integrate our adapter into your products or a wholesaler seeking reliable power solutions for your clients, our product is the perfect choice.
Safety is paramount, which is why our power adapter is equipped with advanced protection features such as over voltage, over current, and short circuit protection, ensuring the safety of connected devices. Crafted with precision and reliability, our power adapter delivers consistent performance, making it the preferred choice for demanding electronics applications.

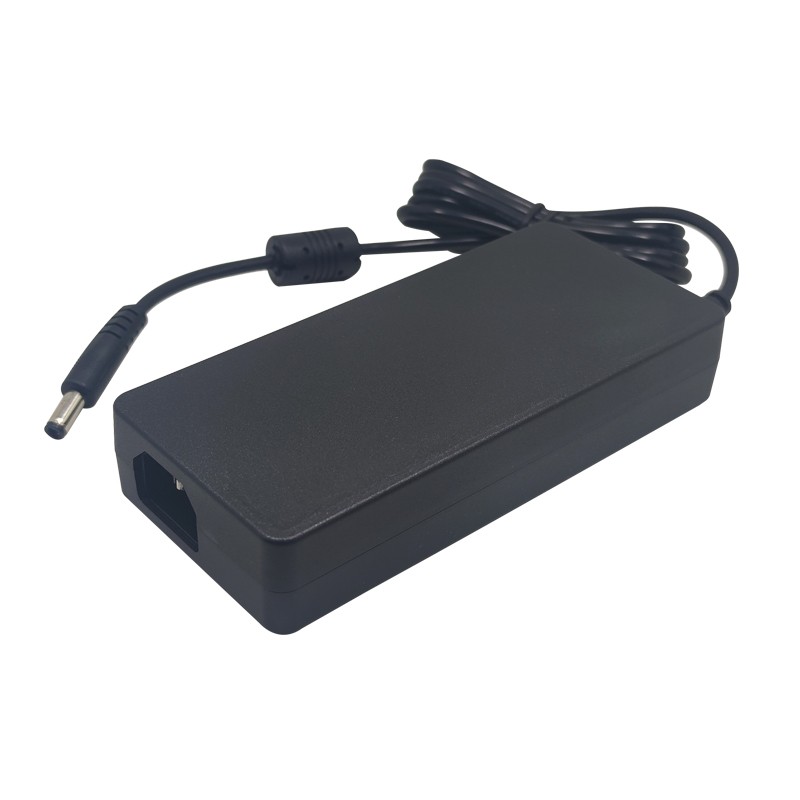

Product Appearance:

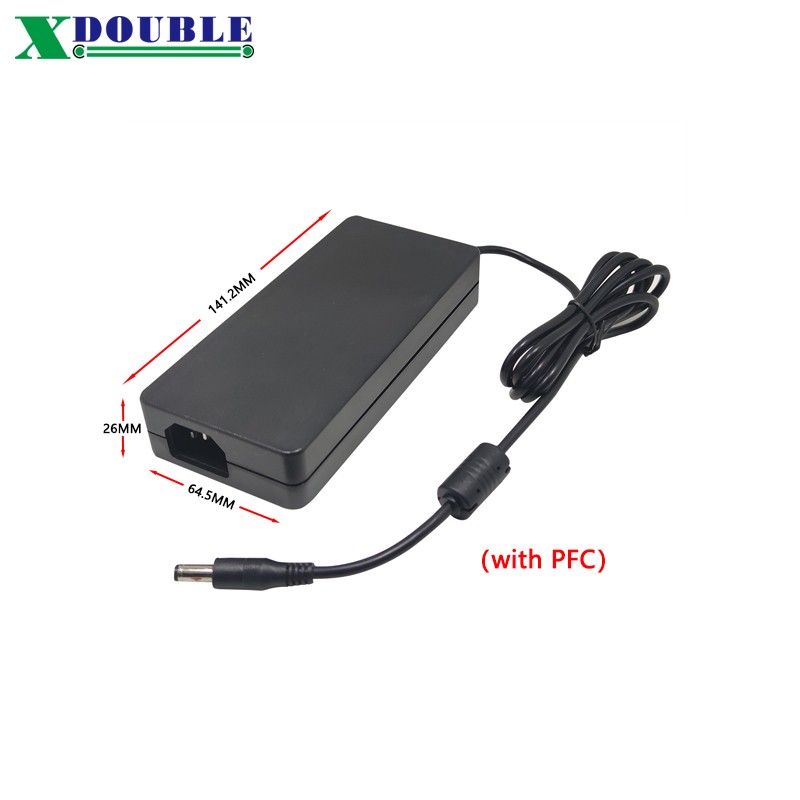

Product Size : 141.2X64.5X26 mm
Weight: 300 g
Output Type:Support fixed cable output,customizable output ports
AC Outlet: Support C6, C8,C14

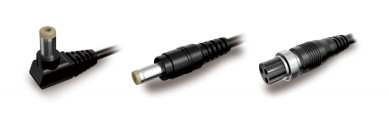

DC Plug:5.5*2.1（2.5）*12mm
Specifications:
Input Voltage : 100-240V(Range, 90-264VAC )
Input Current : 100Vac, 240Vac / full load ≦ 1.2A
Input Frequency : 50-60Hz(Range 47-63Hz)
Output Voltage :12v-52v
Output Current : 1.73A-7A
Ripple&Noise: 300MV max
Power consumption at no load :0.21W max
Voltage /Load Regulation : 5% / 10%
Power Factor:115Vac, 230Vac / full load ≧ 0.9
Working TEMP : 0~70℃ (>40℃ de-rating)
Safety Standards: IEC/EN/UL62368:UL/cUL FCC CCC CB CE GS
EMC Standards： EN55032 FCC PART 15 GB/T9254-2008
Support customized power supply
|
Model |
Output Voltage |
Output Current |
AC Inlet |
Efficiency
|
Over Voltage protection |
|
|
DOE（Level VI） |
COC V5（Tier2） |
|||||
|
SX120-0750 |
12V |
7.5A |
C6/C8/C14 |
≥88% |
≥89% |
19Volts |
|
SX150-0600 |
15V |
6A |
C6/C8/C14 |
19Volts |
||
|
SX190-0500 |
19V |
5A |
C6/C8/C14 |
26Volts |
||
|
SX240-0350 |
24V |
3.5A |
C6/C8/C14 |
32Volts |
||
|
SX360-0250 |
36V |
2.5A |
C6/C8/C14 |
32Volts |
||
|
SX480-0200 |
48V |
2A |
C6/C8/C14 |
58Volts |
||
|
SX520-0173 |
52V |
1.73A |
C6/C8/C14 |
58Volts |
||
12V 15V 19V 24V 32V 48V 52V Desktop AC DC Power adapter 90W
12V 15V 19V 24V 32V 48V 52V Desktop AC DC Power adapter 90W
12V 15V 19V 24V 32V 48V 52V Desktop AC DC Power adapter 90W
